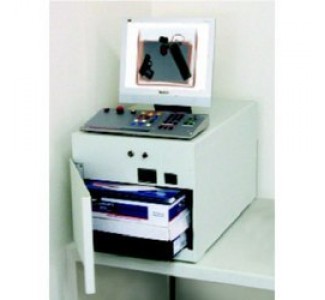

Used for Inward Package Inspection
at Banks, Government Buildings, Ports, Airports, Hotels and Post Offices.

Inspection Capabilities :

    Tunnel Size: 15.4" wide (39 cm) x 8.0" high (20.3 cm) x 15.5” long (40 cm)
    L-shaped detector for 100% package screening.
    Material Penetration: 4 mm (0.16”) steel.
    Contrast Sensitivity: Over 2 million color tones standard.
    Resolution: 38-40 AWG wire.
    Processing: Automatic push button photodiode scan.
    autoTracking®: Belt guaranteed to autoTrack for life.
    Film Safety: Guaranteed for high-speed films up to ISO 1600 (33 DIN).

X-ray Generator :

    X-ray tube head: Self-contained
    High voltage rating: 90 kV standard. 60 kV operating.
    Duty cycle: 100% with sealed oil bath cooling
    Beam orientation: Diagonal 80°

X-ray Detectors :

Surface mounted, multilayer, fully integrated, high frequency, solid state photodiodes using high speed processors, and enhanced Pentium image processing as in airports, with Single Energy color by density.

Video :

Standard with color 19” SVGA monitor. High resolution, flicker-free, .28 dot pitch, low rad. monitor, 1280 x 1024. Single energy color is based on object density. Larger monitors or 15” flat screen monitor available.

Standard Features :

    RealClear
    4X zoom
    Automatic pushbutton conveyor
    autoDensalert
    Dark & Light enhance
    17” High resolution LCD
    autoTracking
    Density Scan
    Fully functional, robust, low profile
    autoSensing
    High/Low Density & Stripping keyboard
    Color; Reverse B/W
    High density
    Fully digital

Physical Details :

    Weight: 185 lbs (83 kg)
    Construction: Unibody heavy gauge epoxy painted steel construction. Stainless steel command center keypad.
    Requirements: 230 volts AC + 10%, < 6 amps. All at 50 or 60 Hz.
